Act I - The Linux Kernel's VFS - exposition

• Is the component in the kernel that handles file-systems, directory and file access.
• It abstracts common tasks of many file-systems.
• And presents the user with a unified interface, via the file-related system calls.

Act II - Relations Of The VFS With The Rest Of The System - the plot thickens...

• The VFS interacts with file-systems
• ... which interact with the buffer cache, page-cache and block devices.
• The VFS also interacts with the user...
• ... via system calls
• Finally, the VFS supplies data structures such as the dcache, inodes cache and open files tables...

VFS And The System - Static Relations

The following figure shows the static relations of the VFS with the rest of the system:

VFS And The System - Dynamic Relations

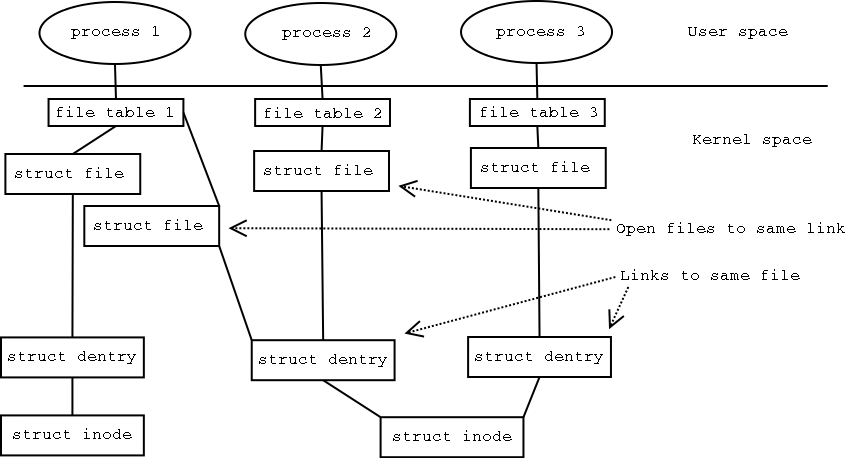

The following figure shows the dynamic relations of the VFS objects with the rest of the system:

Act III - Internal Components Of The VFS - the naked souls...

The following components comprise the VFS:

• dcache - cache of "dentry" objects, used to translate paths to inodes.
• inode cache - cache of "inode" objects, used to represent files and directories on the file systems.
• common code - code which is used by many file-systems, was moved into functions which are now part of the VFS.

About Caches

• Generally, the VFS attempts to keep caches of objects, because:
  1. Allocating objects (memory) takes time.
  2. Resolving objects takes time.
• So for each object type the VFS holds:
  1. A list of used (i.e. may NOT be deleted) objects.
  2. A list of resolved but un-used (i.e. recently resolved but may be deleted) objects.
  3. A list of un-assigned and un-used (i.e. completely free) objects - by using SLAB caches.

The Dcache

• Contains a hash table of "dentry" objects, each representing a translation from a path to an inode (including "negative" dentries - representing recent lookups to non-existing files).
• The dentries are also connected in a tree structure, representing the structures of files and directories on the mounted file systems.
• An entry remains in the dcache until its file-system is un-mounted...
• ... or until it is pruned during a cache shrink, which happens once every 300 seconds, by the swap-daemon (kswapd)...
• ... or when the swap-daemon (kswapd) needs to free space.
• See file fs/cache.c, function prune_dcache, for the gory details.

The Inode Cache

• Contains a hash table of "inode" objects, each representing a file/directory on a mounted file system.
• Each inode is potentially linked with a dentry...
• ... as well as with the file-system it belongs to.
• Each inode contains a list of pages and (dirty) buffers belonging to the file/directory this inode represents.

The File Object

• An object representing an open file instance.
• Points to a dentry, which points to an inode that represents the actual file...
• Contains information such as the "current position", access mode using which the file was opened, uid and gid via which the file is open, etc.
• Contains a pointer to 'file operations', which is set by the underlying file-system (or device driver - in case we opened a device-special file).

Act IV - The VFS Sources - there's a birdhouse in your code...

Lets review the more-interesting source files of the VFS, all found under directory "fs":

• super.c - handling of super-blocks and of file-system types.
• namespace.c - file-system mount and unmount.
• namei.c - file tree manipulation (lookups, inode creation and deletion, permissions checking...).
• read_write.c - implementation of read, write and lseek system calls for files.
• dquot.c - handling of disk usage quotas.
• dcache.c - implementation of the dcache...
• inode.c - implementation of the inode object and inode cache.

Act V - Example VFS Operations - three paths to your soul...

• Let us look at a few interesting VFS operations:
  1. Path to inode translation.
  2. File open.
  3. File read.

VFS Operations - Path To Inode Translation

Given a (full or relative) path to a file, find its inode:

Entry function: user_path_walk, in include/linux/fs.h.
Actual lookup function: link_path_walk, in fs/namei.c.

1. First, get the dentry to "/" (if it's a full path) or to "." (if it's a relative path).
2. Start scanning the path, and follow via the dcache.
   1. Handle "." by skipping.
   2. Handle ".." using dentry->d_parent.
   3. Handle others via a cache lookup.
   4. If not found in the cache - ask the underlying filesystem to perform a real lookup.

VFS Operations - File Open

Given a file path, an open mode and a file permissions mask:

Entry function: sys_open, in fs/open.c.
Underlying open function: filp_open, in fs/open.c.

• Allocate a free file descriptor.
• Try to open the file (next slide).
• On success, put the new 'struct file' in the fd table of the process.
  On error, free the allocated file descriptor.

Actually Opening The File

Entry function: open_namei, in fs/namei.c.

• If not opening in create mode (no O_CREAT flag given):
  lookup the file via the dentry cache (path_lookup -> path_walk -> link_path_walk).
• Otherwise (it is an open in create mode):
  1. Lookup the parent directory (path_lookup again). If it does not exist, or is not a directory - fail the operation.
  2. Lookup the file in the parent directory. If it does not exist, create it (see vfs_create later on).
  3. Handle special cases (flags mismatch, file is a directory, file is a link...).
• In both cases (open with create or file already exists):
  1. Perform sanity checks.
  2. Check permissions.
  3. Check various mode limitations (e.g. file is read-only and trying to open for write, trying to open a device file on a 'no_dev' file-system mount, etc.).
  4. Handle truncation.

VFS Create

Entry function: vfs_create, in fs/namei.c.

• Check if we may create a new entry in the given directory (mostly permission checking).
• Check that the underlying inode has a 'create' inode operation.
• Invoke the 'create' inode operation (of the file-system).

VFS Operations - File Read

Entry function: sys_read, in fs/read_write.c:

• Using the file descriptor, get the (already opened) file struct.
• Verify that the file's access mode allows read.
• Check locks.
• Invoke the underlying 'read' file operation of the file's inode.

Reading Via The Page Cache

Entry function: do_generic_file_read, in mm/filemap.c:

• Get the address mapping of the file's inode.
• Translate the read position to a page index (each page contains 2^PAGE_CACHE_SHIFT bytes).
• Calculate read-ahead parameters (i.e. reading from a file at position X normally causes reading several more pages, assuming the application is likely to request those pages next).
• Make sure we're not reading past EOF.
• For each page in the range the user asked to read from:
  1. Look for the page in the page cache. If it is there, and
  2. If it's there, and is up-to-date:
     1. If we're not in 'non-blocking' mode (i.e. we're allowed to block), invoke read-ahead.
     2. Copy data from the page to the user's buffer.
  3. Otherwise, use the address mapping 'readpage' operation to read the page, and start over (unless we're in non-blocking mode).

References

1. Linux Kernel 2.4 Internals - Virtual Filesystem (VFS)
2. The Linux Virtual File-System Layer
3. Linux Virtual File System (lecture slides from 1998).
4. A Small Trail Through The Linux Kernel (code walk-through for open and read system calls).

Originally written by guy keren
